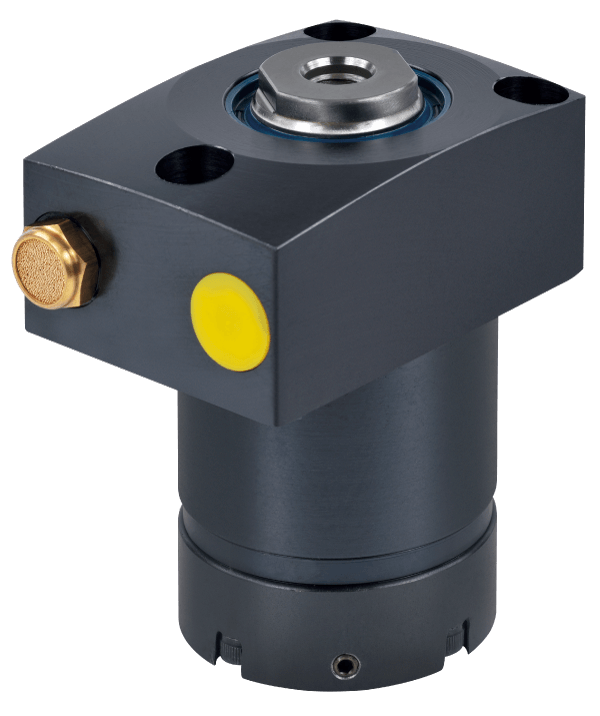

SP Hydraulic Work Support Cylinder(SP-FA32B)

Can choose Pipe Thread type or Manifold-Mounted according to needs.

Part-No.: SP-FA32B-Pipe Thread Type. SP-FAM32B-Manifold-Mounted Type.

Support cylinders are mainly used to support workpieces. They can compensate for surface irregularities during machining and bear the loads during processing to prevent vibrations and workpiece deformation.

The product is available in two types, A and B: Type A is a spring-extend type, where the initial position of the shaft is the highest extended position. When the workpiece contacts the downward shaft for positioning, filling the oil will tighten the shaft to generate supporting force.。 Type B is a hydraulic-extend type, where the initial position of the shaft is the lowest. After positioning the workpiece, supplying oil will extend the shaft to contact the workpiece and then stop, tightening the shaft to generate supporting force.
