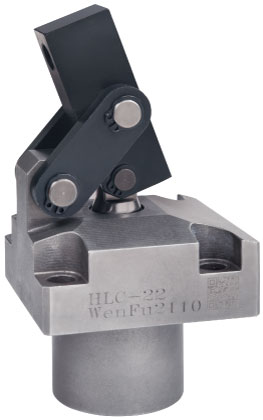

HLC Hydraulic Link-Clamp Cylinder
Product Overview
The HLC link-clamp cylinder is mainly used when there is a need for space clearance for placing and clamping workpieces, allowing for easy placement and clamping of the workpiece.
This product is of Japanese specifications.
A dust seal is provided at the push rod to prevent external dirt from entering the cylinder body.
The maximum operating pressure can reach 300 bar. (If the clamping arm is longer, it can reach 350 bar. For details, please consult the technical staff.)
You can choice pipe thread or manifold-mounting type.
When supplying oil through pipe thread, please remove the nut installed in the oil inlet hole of the piping and ensure that the O-ring of the oil inlet hole of the manifold-mounting is properly installed.
A filter screen is installed at the product's oil inlet hole to prevent foreign objects from entering the cylinder body.
This link-clamp cylinder is double-acting.
※The product itself does not come with a clamping arm, which needs to be made or ordered separately.
