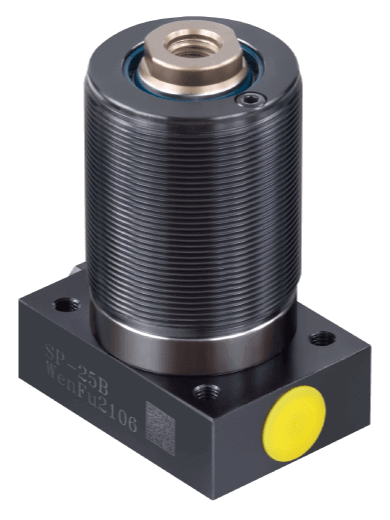

SP Hydraulic Work Support Cylinder(SP-25)

The maximum support force can reach up to 25 kN and is available in two types, A and B. You can choose between pipe thread type or manifold-mounted type based on your needs.

Part-No.: - SP-25A-Spring-Extend with Pipe Thread Type. - SP-M25A-Spring-Extend with Manifold-Mounted Type. B - SP-25B-Hydraulic-Extend with Pipe Thread Type. - SP-M25B-Hydraulic-Extend with Manifold-Mounted Type.

Support cylinders are mainly used to support workpieces. They can compensate for surface irregularities during machining and bear the loads during processing to prevent vibrations and workpiece deformation.

The product is available in two types, A and B: Type A is a spring-extend type, where the initial position of the shaft is the highest extended position. When the workpiece contacts the downward shaft for positioning, filling the oil will tighten the shaft to generate supporting force.。 Type B is a hydraulic-extend type, where the initial position of the shaft is the lowest. After positioning the workpiece, supplying oil will extend the shaft to contact the workpiece and then stop, tightening the shaft to generate supporting force.
